Using standardization to ensure product quality control will always be in the first place
We promote a unified quality standard,and each process has clear quality standard rules.During the production process,we use precision testing equipment to chek the quality level by level,and strictly implement self-inspection, re-inspection and final inspection to ensure every cooperation.

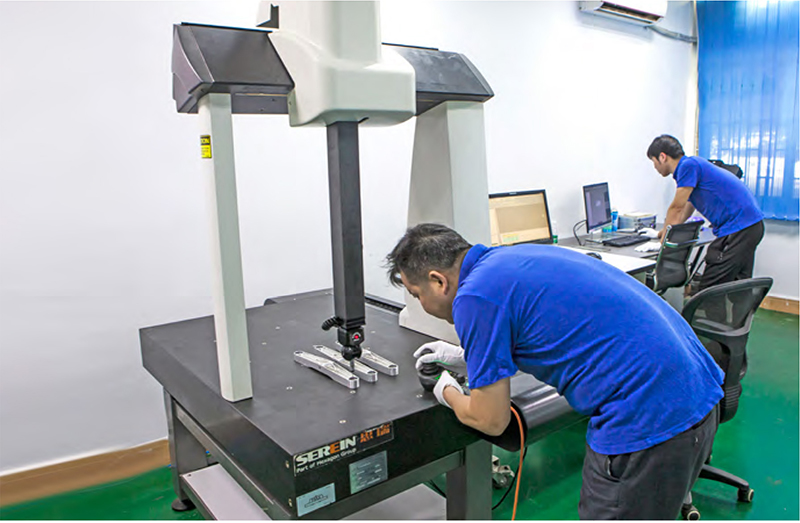

Trilinear coordinates measuring instrument
Three coordinate measuring instrument is an instrument that can show the measurement ability of geometry, length and circumferential division in the spatial range of a hexahedron. CMM can also be defined as "an instrument with a detector that can move in three directions and can move on three mutually perpendicular guide rails. This detector transmits signals in contact or non-contact. The displacement measurement system of three axes (such as grating ruler) calculates the points (x, y, z) and functions of the workpiece through data processor or computer". The measuring function of CMM shall include dimensional accuracy, positioning accuracy, geometric accuracy and contour accuracy

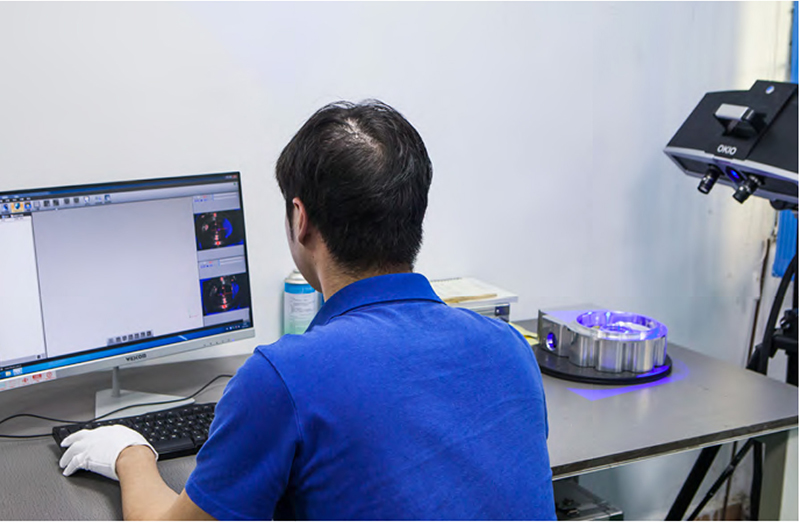

3D scanner
3D scanner is a portable and most advanced scanning system, which is used to capture and calculate 3D data quickly and accurately. With easy-to-use software, interchangeable lenses and sensors, it can scan up to 5 million data points on components of almost any size in its wide focal length range. It is ideal for checking part compliance, identifying manufacturing errors and reverse engineering. By comparing the scanned data with 3D data, we can find the differences.

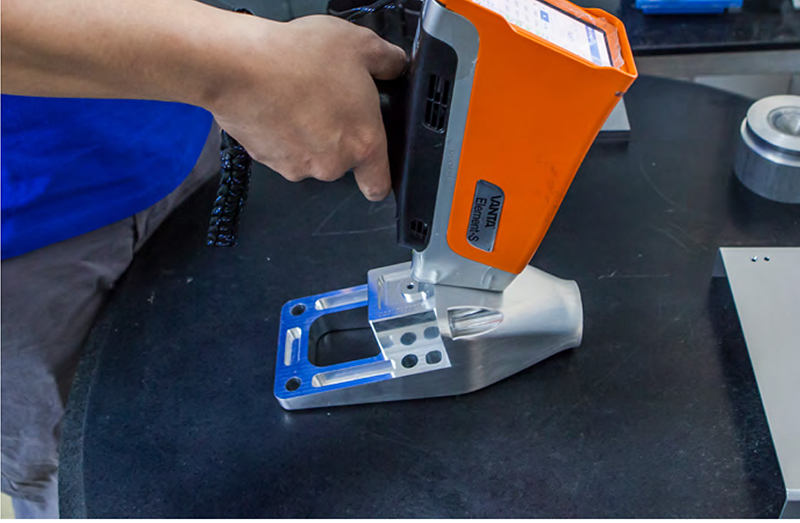

Spectrometer
Spectrometer is the latest product of our measurement and testing laboratory, which is used to identify incoming materials. There are many similar alloy and metal grades on the market, some of which are mislabeled or fraudulent. We provide inspection for all incoming materials, so you are fully confident to receive the products you ordered.

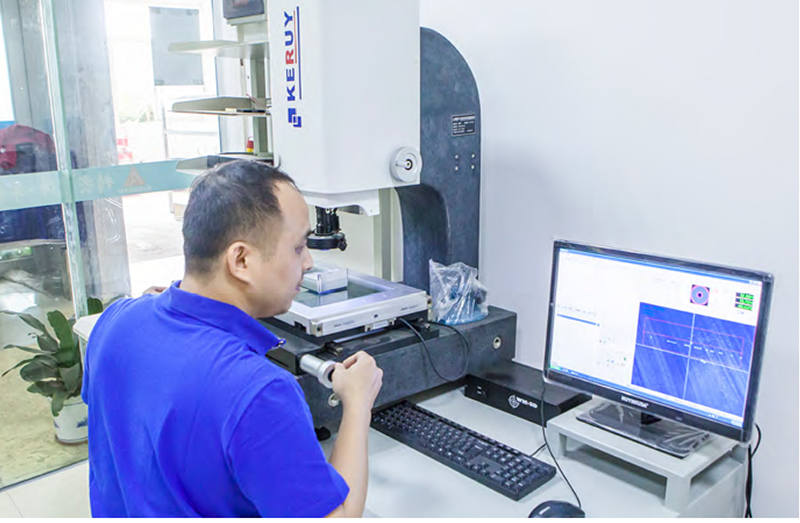

The secondary element measuring instrument
The secondary element measuring instrument is used to measure the dimensions of products and molds, or to measure the geometric tolerance of the measured elements, such as position, concentricity, straightness, contour, roundness and dimensions related to the benchmark. The secondary element is mainly used for the two-dimensional plane detection of thinner products (such as shrapnel) and smaller products or the two dimensional projection detection of other workpieces.

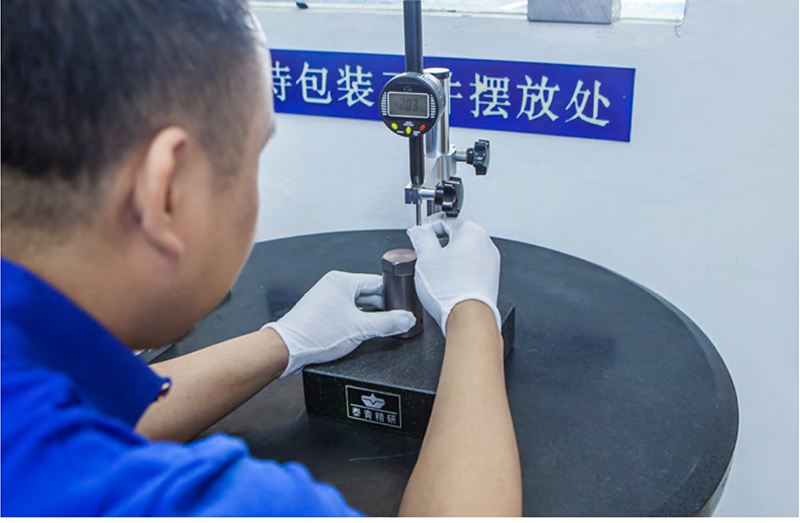

Dial indicator
Dial indicator is a length measuring instrument that converts the general linear displacement (linear motion) into the rotating motion of the pointer through gear or lever, and then reads on the dial. Dial indicator is an indicating measuring tool widely used in precision measurement. It is mainly used to check the shape and position error of the workpiece. (such as roundness, flatness, perpendicularity, circular runout, etc.) are also commonly used in the precise alignment of workpieces.

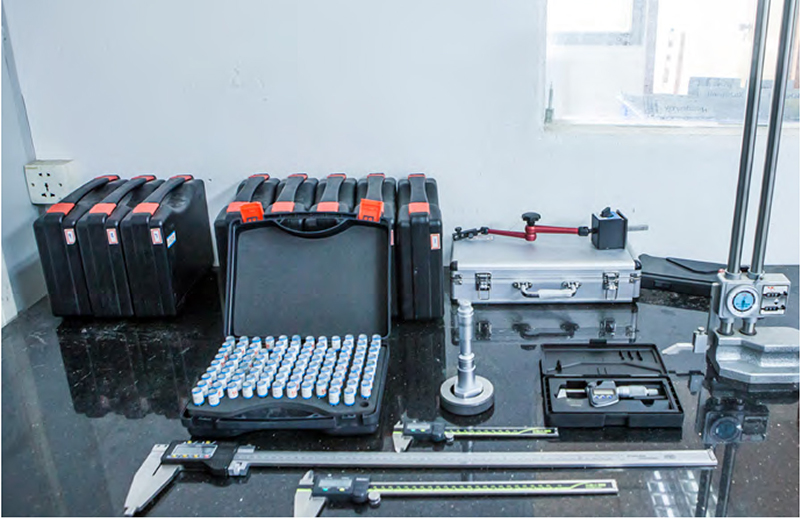

Gauge
It is used to check the position, measure the size of the hole and check the distance between the two holes. It can also be used as a go no go gauge and measure the depth of the hole. It is a necessary inspection tool for the standardized inspection of the hole. The workpiece is tested with the international advanced laser detector. It is widely used in various high-precision and cutting-edge technology fields such as mold and precision machinery manufacturing.
Quality Management System
TIPTOP has a set of "Manufacturing Operation Specification System" and "Quality Management System" that have gathered more than 20 years of experience in precision machining and prototype manufacturing. The rigorous quality control of the "Manufacturing Operation System" and "Quality Management System" give you the affirmation of your choice.
Inspections and Review for Every Stage of Production
To ensure quality from start to finish, TIPTOP provides the following inspection and review services:
＊ Extensive incoming materials verification
＊ Design for manufacturing reviews for all quotes provided
＊ Contract reviews upon receipt of POs

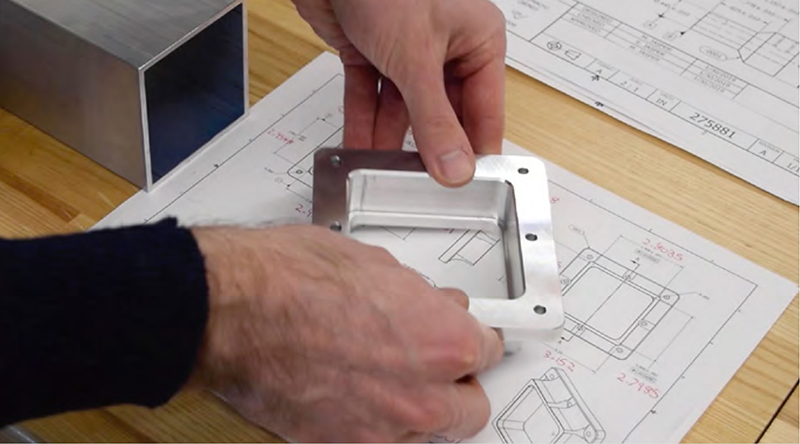

＊ First article and in-process inspections
Final inspections and testing with reports and certifications as required
